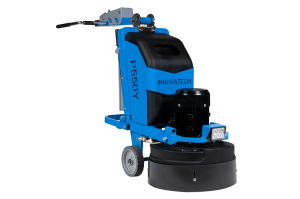

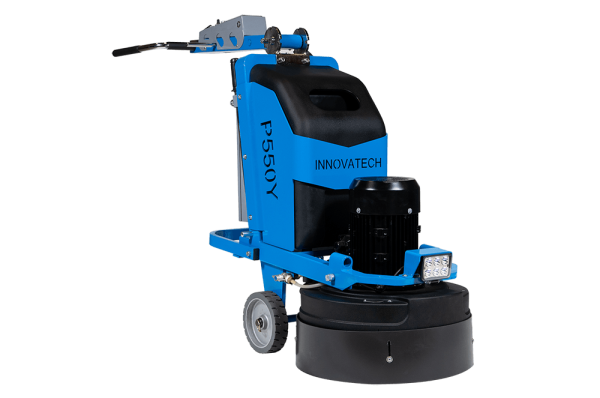

P550Y
- 22 inch diameter (550 mm)
- Precision balanced 3-head planetary design
- Heavy-duty steel frame
PLANETARY GRINDER
Build Your Package P550Y
- 22 inch diameter (550 mm)
- Precision balanced 3-head planetary design
- Heavy-duty steel frame

Product Description
Predator Grinders are manufactured with some of the highest standards in the industry, making them extremely reliable, productive, balanced, and easy to use for any operator.
Designed to pair with the HD HEPA-filter Dust Extraction system for unbeatable dust control so your job site stays safe and compliant.
- 22 inch diameter (550 mm)
- Precision balanced 3-head planetary design
- Heavy-duty steel frame
- Easy height adjustment handle
- Assortment of tooling available for either grinding or polishing
- Easy on-site maintenance or repair with standard tools
- Variable speed control
- Forward/reverse grinding
- Integrated water tank
- Bright LED work light included
- Convenient SlideMAG or standard 3-hole-bolted tooling plates
- Additional weight included (77lbs 35kg)
- Adjustable dust skirt for effective dust control
Technical Specifications
MODEL | P550Y |
---|---|
Motor / Engine | 220V, Single-Phase |
AMPS | 17.6A |
Power Output | 5hp (3.7kW) |
Power Frequency | 60Hz |
Twist Lock Plug | 30A, NEMA L6-30P |
Motor/Engine RPM | 0 – 1800 |
Grinding Head RPM | 0 – 1500 |
Planetary Plate RPM | 0 – 540 |
Grinding Width | 21.7" (55cm) |
Head Diameter | 9" (23cm) |
Length | 38.2" (97cm) |
Width | 21.7" (55cm) |
Height | 33.5" (85cm) |
Weight | 369 lbs (180kg) |
