HIGH PERFORMANCE ORBITAL CONCRETE GRINDER
Heavy-Duty Three-Headed Orbital Concrete Grinder

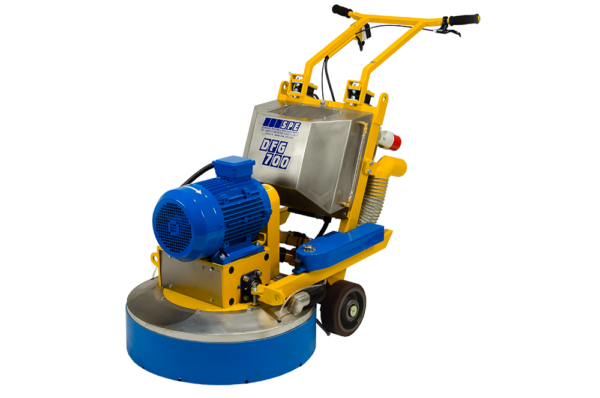

THE DFG700 Triple Head Planetary Floor Grinder is a large format grinder, delivering a polished finish to large areas using orbital grinder principles, eliminating swirl marks that can be left by other grinding methods.
- Pivotal weights and quick-release drive plate system
- Heavy duty gearbox drive
- Grinding heads supported by a multi-directional flexible coupling
- Variable grinding speed
- Robust construction
- Anti-vibration handlebar mount
- Quick release drive plate system
- Pivotal weights
- Can be used with conventional DFG Diamond Plates
Technical Specifications
| Model | DFG700-2 | DFG700-1 |
|---|---|---|
| Motor Type | Single Speed | Variable Speed |
| Voltage | 400V | |
| Power Output | 15hp (11kW) | |
| Cycles | 50Hz | |
| Head Speed | 400 rpm | 3 x 180/400 rpm |
| Motor Speed | 2800 rpm | |
| Length | 62" (1570mm) | |
| Width | 27" (680mm) | |
| Height | 43" (700mm) | |
| Weight | 633 lbs (287kg) | 644 lbs (292kg) |
| Pivotable Weight | 2 x 44 lbs (20kg) | |
| Water Tank | 9 gallons (32.5L) | |
