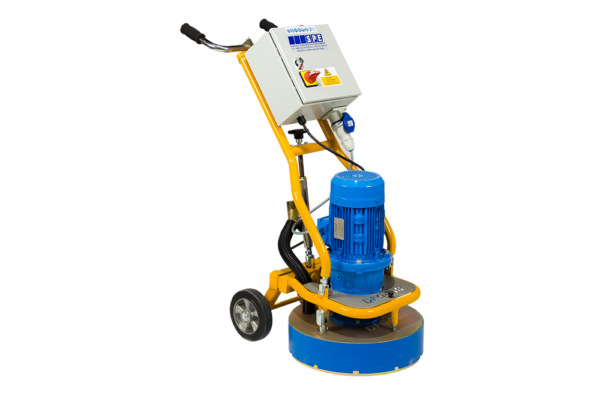

ORBITAL CONCRETE GRINDER

DFG460

18" (460mm) working width
Triple-head planetary grinder
Powerful medium-sized machine suitable for the majority of grinding tasks

Build Your Package

PROFESSIONAL ORBITAL CONCRETE GRINDER

The DFG460 Three-Head Planetary Grinder has been developed to provide a medium-sized, portable machine that grinds to a polished finish using orbital grinder principles, eliminating swirl marks that can be left by other grinding methods.

A direct drive system, coupled with a heavy-duty gearbox, ensures maximum torque at the grinding heads. The DFG460 offers single-speed options for general surface preparation tasks. For more precise grinding and polishing, variable speed versions are also available.

Efficient, powerful but also portable
Heavy duty gearbox drive system
Adjustable height anti-vibration handlebars
Self levelling head design
50mm dust extraction port
Large diameter wheels for excellent mobility and stability
Dust free when operated with the VAC316 Dust Collector

Technical Specifications

Model	DFG460-5	DFG460-3	DFG460-1	DFG460-4	DFG460-2
Voltage	110V	220V	400V	220V	400V
Motor Type	Single Speed			Variable Speed
Power Output	3hp (2.2kW)
Cycles	50Hz
Head Speed	231 rpm			0–277
Motor Speed	1420 rpm			0–1704
Length	41" (1040mm)
Width	18.5" (470mm)
Height	42.5" (1080mm)
Weight	258 lbs (117kg)			273 lbs (124kg)

Model	DFG460-5	DFG460-3	DFG460-1	DFG460-4	DFG460-2
Voltage	110V	220V	400V	220V	400V
Motor Type	Single Speed			Variable Speed
Power Output	3hp (2.2kW)
Cycles	50Hz
Head Speed	231 rpm			0–277
Motor Speed	1420 rpm			0–1704
Length	41" (1040mm)
Width	18.5" (470mm)
Height	42.5" (1080mm)
Weight	258 lbs (117kg)			273 lbs (124kg)
