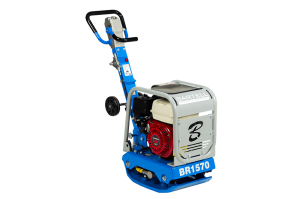

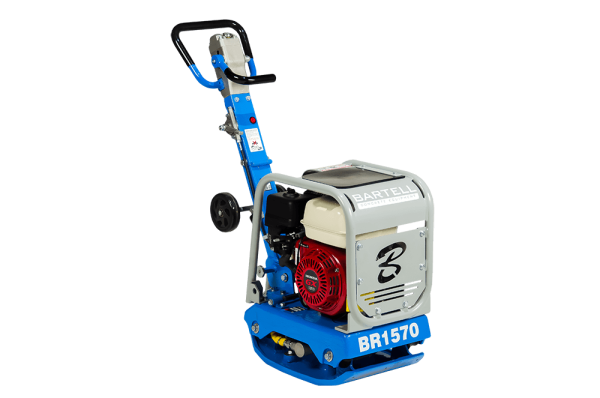

BR1570

Cast aluminum throttle lever for professional and durable control
Integrated lifting bale for safe loading and unloading
Full roll cage and cast aluminum belt cover for clutch and engine protection

Build Your Package

Product Description

The Bartell BR1570 is our smallest and most versatile reversible model. It is so compact and cost-effective, you could easily upgrade to higher production rates by going reversible, without increasing your investment.

The fully hydraulic reversing mechanism sets the Bartell line of reversible compactors apart from the competition, providing more flexible maneuverability for forward, backward, and spot-on compaction.

Cast aluminum throttle lever for professional and durable control
Integrated lifting bale for safe loading and unloading
Full roll cage and cast aluminum belt cover for clutch and engine protection
Ductile iron bases for increased strength
Retractable wheels flip down for built-in mobility
Optional urethane mat protects pavers and slabs from scratches and breakage
Full speed in both forward and reverse
Specialized for compacting sand, trench, and patching

Technical Specifications

Engine Type	Honda GX160
Power Output	4.8hp (3.6kW)
Compaction Force	3461 lbf, 15 kN, 1570 kgf
Max Travel Speed	65'/min (20m/min)
Length	35" (88cm)
Width	14" (35cm)
Height	35" (88cm)
Weight	193 lbs (87.5kg)
Plate Size	14" x 19" (35cm x 48cm)
