BXR836 HYDRAULIC

  • Hydraulic Power delivers immediate, responsive steering (pitch is adjusted mechanically)
  • Heavy-duty gearbox provides longer life and requires less maintenance
SKU: N30050 Category: Tags: , ,
RIDE-ON TROWELS

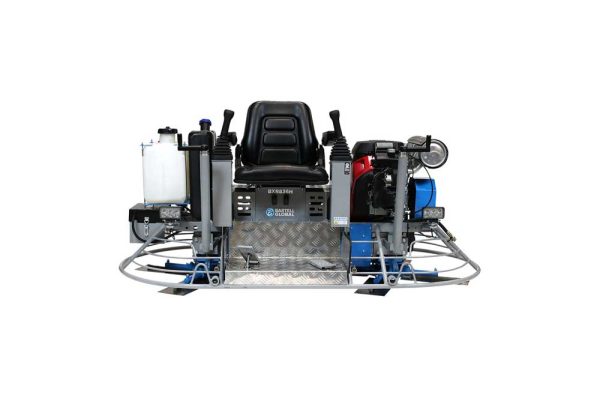

BXR836 HYDRAULIC

  • Hydraulic Power delivers immediate, responsive steering (pitch is adjusted mechanically)
  • Heavy-duty gearbox provides longer life and requires less maintenance
Build Your Package

Product Description

The newest addition to our fleet offers all the features of the BXR836, with the added benefit of Hydraulic Power delivering immediate, responsive steering.

At just 683lbs, and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present.

The BXR836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition. The BXR836 is the perfect jump to riding, for those currently only walking.

More

Technical Specifications

Blade Configuration Panning & Finishing (Non-Overlapping)
Power Source Gas Honda GX690
Power Output 22hp (16kW)
Blade RPM 145
Float Blade Size 10" x 14" (25cm x 36cm)
Finish Blade Size 6" x 14" (15cm x 36cm)
Combo Blade Size 8" x 14" (20cm x 36cm)
Float Pan 36.5" (93cm)
Weight 683lbs (310kg)
Operating Weight 788lbs (357kg)
Length 76" (193 cm)
Width 38.5" (98cm)
Height 38" (97cm)

Build Your Package

Choose from the options below, then click 'Add to Quote Cart' button.


Want to learn how to BOOST YOUR ROI by adding Power Trowels to your fleet? Download
