COMPACTION

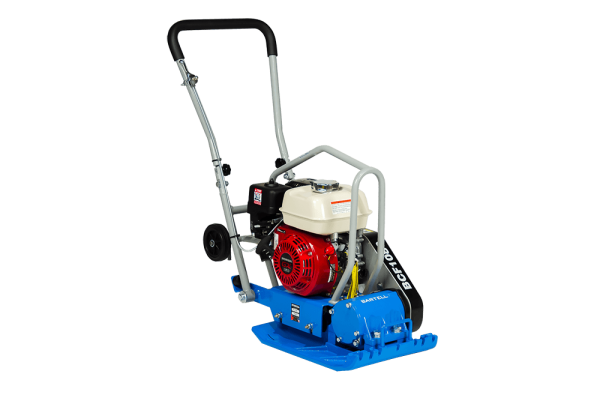

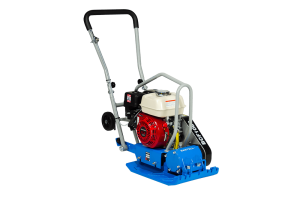

BCF1080

Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage

Build Your Package

Product Description

Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1080 is the smallest compactor that Bartell offers and is perfect for light compaction applications. Because of its size, the BCF1080 Forward Plate Compactor can be moved easily around the job site.

Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage
Retractable wheels flip down for built-in mobility around the job-site
Integrated lifting bale for safe loading and unloading
Straight-edge plate design leaves no unreachable margins
Sealed housing keeps debris from interfering with the belt
Optional urethane mat protects pavers and slabs from scratches and breakage

Technical Specifications

Engine	Honda GX160, 4.8hp (3.6kW)
Compaction Force	2381 lbf, 10.5 kN, 1080 kgf
Max Travel Speed	82'/min (25m/min)
Length	28" (711mm)
Width	16" (406mm)
Height	23" (584mm)
Weight	137 lbs (62kg)
Plate Size	14" x 22" (35 x 55cm)
