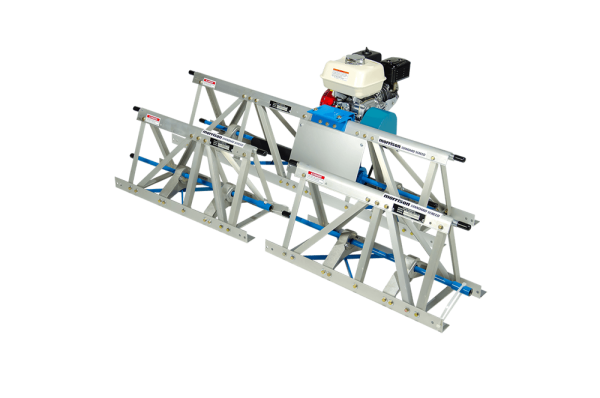

Standard Screed
- High frequency vibrations are distributed evenly across entire length to produce smooth, uniform surfaces quickly and easily
- Standard truss is 13.5″ tall and can span 40′
- Can consolidate less than 2″ slump. Up to 12″ in depth
SCREED
Build Your Package Standard Screed
- High frequency vibrations are distributed evenly across entire length to produce smooth, uniform surfaces quickly and easily
- Standard truss is 13.5" tall and can span 40'
- Can consolidate less than 2" slump. Up to 12" in depth

Product Description
High frequency vibrations distributed evenly across entire aluminum screed length to produce smooth, uniform surfaces quickly and easily. Capable of consolidating and condensing concrete with slumps of less than 2" with up to 14,000 vibrations per minute.
- High frequency vibrations are distributed evenly across entire length to produce smooth, uniform surfaces quickly and easily
- Standard truss is 13.5″” tall and can span 40′
- Can consolidate less than 2″” slump. Up to 12″” in depth
- Morrison screed vibrates at over 14,000 vpm
- Aluminum screed weighs 9 lbs/ft compared to steel (up to 20 lbs/ft)
- Lightweight makes our screed suitable for use on any type or form
- Only Morrison screed has the patented loose bearing system
- Available in hydraulic travel or hand winch
Technical Specifications
Engine | Honda GX160 | |
---|---|---|
Truss Screed | Standard | |
Height | 13.5" (34cm) | |
Width | 12" (30cm) | |
Weight | 10 lbs/foot (4.5kg/30cm) | |
Base Section | 10' (3m) | 79 lbs (36kg) |
Subsections | 2.5' (0.75m) | 27 lbs (12kg) |
5' (1.5m) | 46 lbs (21kg) | |
10' (3m) | 85 lbs (39kg) | |
Motor Mount | 53 lbs (24kg) | |
Max Recommended Span | 40' (12m) | |
Average Peak Vibration | 12,830 rpm | |
Max Compaction Depth | 12" (30cm) | |
Self-Propelled Hydraulic Ends | 166 lbs (76kg) | |
Hand Winch | 40 lbs (18kg) | |
Subsections | 0MS1-0120A | SCREED STANDARD 10 FT SUBSECTION |
0MS1-0121A | SCREED STANDARD 5 FT SUBSECTION | |
0MS1-0126A | SCREED STANDARD 2.5 FT SUBSECTION | |
0MS1-0131A | SCREED STANDARD 1 FT SUBSECTION M2642 | |
0MS1-0201A | SCREED STANDARD SELF PROP. LH SECTION M1089 | |
0MS1-0202A | SCREED STANDARD SELF PROP. RH SECTION M1088 |
