Titan88

  • 6″ lower to the ground than previous models
  • 19″ height from bottom of foot to seat
  • LED lights in front and rear
SKU: TITAN88-BASE Category: Tags: ,
RIDE-ON TROWELS

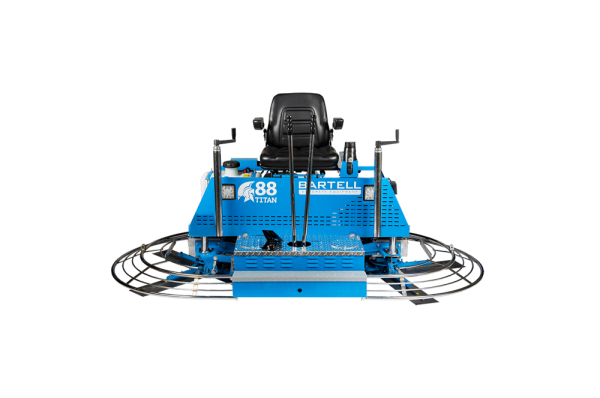

Titan88

  • 6" lower to the ground than previous models
  • 19" height from bottom of foot to seat
  • LED lights in front and rear
Build Your Package

Product Description

Our line of TITAN Ride-On concrete trowels have evolved over decades of research, testing, expert engineering and contractor feedback direct from the slab. We machine the tightest tolerances in the industry, which gives the Bartell Titan trowel arms more rigidity, better balance, and less demand for maintenance and repairs. We rely on this precision to allow for a lighter machine that is effective without needing the extra weight that many others use to compensate for poor design.

The TITAN comes in three sizes (78, 88, 96 inches), with several choices of engines, including hydraulic and propane options. Compatible with the iShine TPS system. Add concrete polishing to your list of services without adding the cost of an additional machine!

The Titan 88 is the only titan with overlapping blades, which increases efficiency, removing the gap between the two sets of blades, and eliminating the need for a second pass (or diagonal attack angle). The only downside is that the overlapping design means the Titan 88 can't be used for panning like the other Titans can.

More

Technical Specifications

Models TITAN 88
Blade Configuration Finishing (Overlapping)
Engine Type Kohler CH730 Kohler CH740 Kohler ECH749
Power Output 23hp 25hp 26.5hp
Blade RPM 180
Float Blade Size 10" x 18" (25cm x 46cm)
Finish Blade Size 6" x 18" (15cm x 46cm)
Combo Blade Size 8" x 18" (20cm x 46cm)
Float Pan
Weight 894 lbs (406kg)
Operating Weight 930 lbs (422kg)
Length 88" (224cm)
Width 48" (122cm)
Height 46" (117cm)

Build Your Package
