Product Description

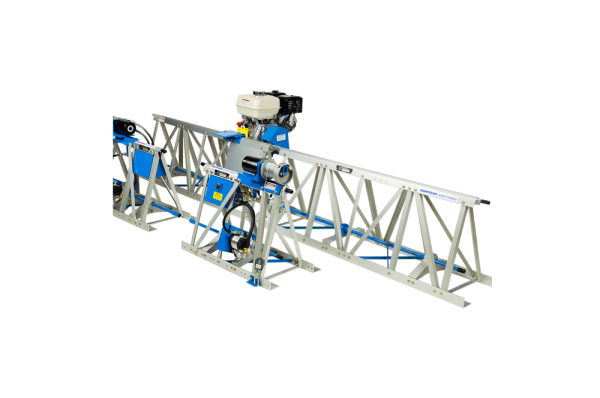

High frequency vibrations distributed evenly across entire aluminum screed length to produce smooth, uniform surfaces quickly and easily. Capable of consolidating and condensing concrete with slumps of less than 2" with up to 14,000 vibrations per minute to perform 25% faster than competitive screeds on either high or low slump concrete.
MoreTechnical Specifications
| Engine | Honda GX270 | |
|---|---|---|
| Truss Screed | Super | |
| Height | 19.5" (50cm) | |
| Width | 15" (37cm) | |
| Weight | 15 lbs/foot (6kg/30cm) | |
| Base Section | 10' (3m) | 94 lbs (43kg) |
| Subsections | 2.5' (0.75m) | 31 lbs (14kg) |
| 5' (1.5m) | 55 lbs (25kg) | |
| 10' (3m) | 100 lbs (45kg) | |
| Motor Mount | 70 lbs (32kg) | |
| Max Recommended Span | 80' (24m) | |
| Average Peak Vibration | 14,000 rpm | |
| Max Compaction Depth | 12" (30cm) | |
| Self-Propelled Hydraulic Ends | ||
| Hand Winch | ||
| Subsections | 0MS2-0120A | SCREED SUPER 10 FT SUBSECTION |
| 0MS2-0121A | SCREED SUPER 5 FT SUBSECTION | |
| 0MS2-0126A | SCREED SUPER 2.5 FT SUBSECTION | |
| 0MS2-0131A | SCREED SUPER 1 FT. SUBSECTION M2333 | |
| 0MS2-0201A | SCREED SUPER SELF PROPELLED LH SECTION M1142 | |
| 0MS2-0202A | SCREED SUPER SELF PROPELLED RH SECTION M1141 | |
