BEF320

13-inch (320mm) working width
Accurate depth control for precise surface textures and maximum cutter life
Variable speed
Self-propelled, hydrostatic drive
Hydraulic drum raise and lower

Build Your Package

Product Description

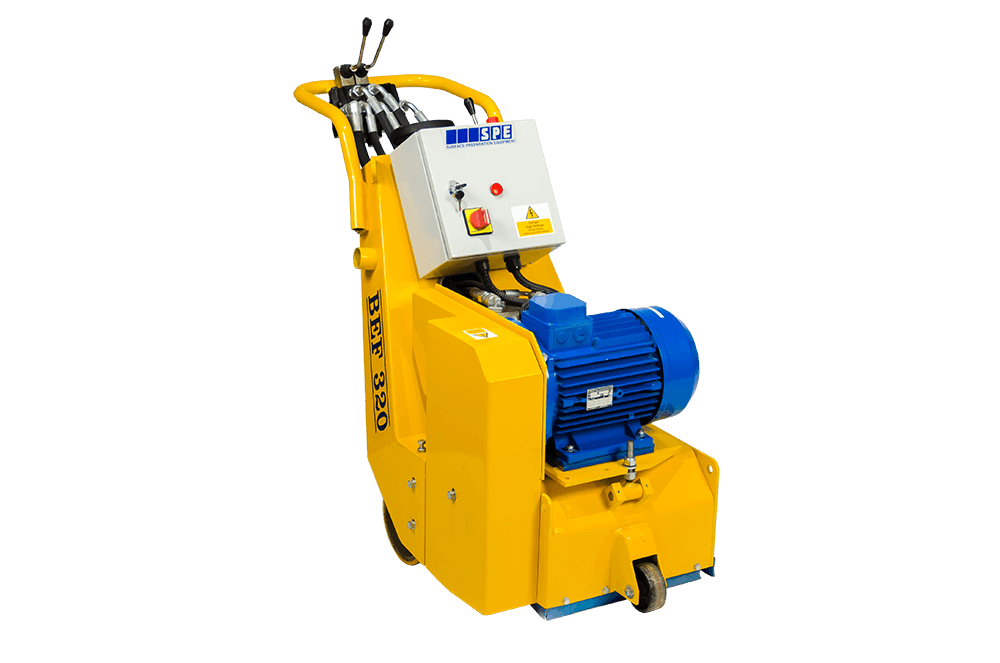

Bartell Global's line of SPE scarifiers has been proven by contractors around the world for over 30 years. Many years of experience in the design and operation of surface preparation Equipment have been integrated with cutting-edge computer-aided design, resulting in the BEF320 Concrete Scarifier.

Applications include: cleaning and texturing concrete and asphalt; removal of paint, rust, grease, ice deposits, line markings, and concrete laitance; removal of waterproof membranes; thermoplastic line removal; grooving applications.

Models	BEF320
Part Number	BEF 320-1A •	BEF 320-3A •
Engine/Motor Type	Electric	Diesel
Power Output	15hp / 11.2kW	10hp / 7.5kW
Voltage	460V 3-Phase	–
Cycles	–
Cutter Head RPM	933	1333
Starter	Star / Delta	Manual
Travel Speed	0–39 ft/min (0–12 m/min)
Length	48.5" (123cm)
Width	23.25" (59cm)
Height	48" (122cm)
Weight	749 lbs (339kg)	702 lbs (319kg)
Working Width	12.5" (32cm)
Working Distance from Wall	1.5" (4cm)
Engine/Motor RPM	–
